U-Anchors

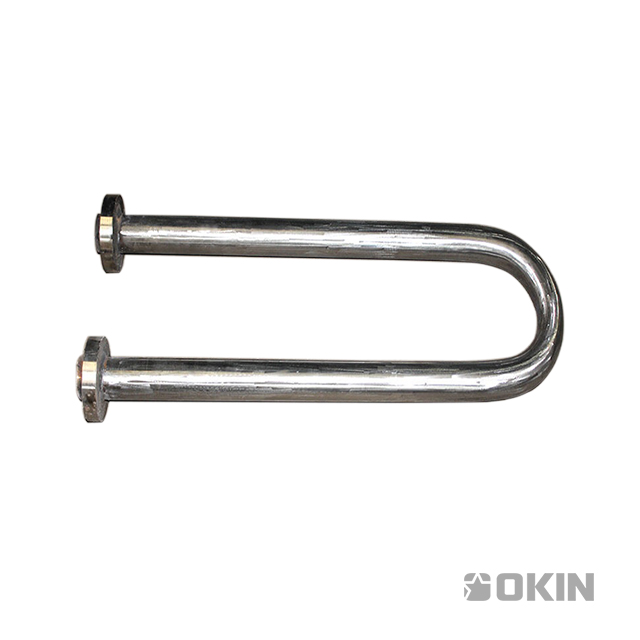

U Anchor is an main accessory in marine rubber fender system. It is used to hold chains. Generally the material of U Anchors is Q235 painted, Q235 hot-dip galvanization.

U-Anchors

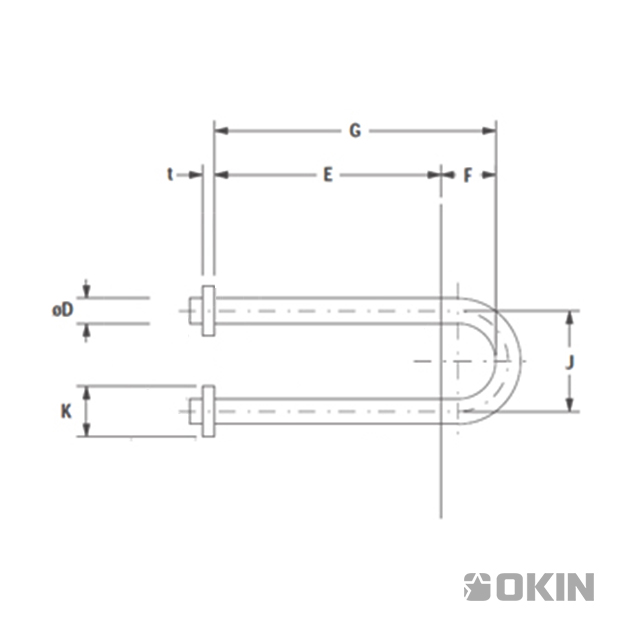

ØC (mm) ØD (mm) E (mm) F (mm) G (mm) J (mm) K (mm) t (mm) Weight (kg each)
18 26 260 60 320 104 50 12 3.4
20 30 300 70 370 120 50 15 5.1
22 34 340 70 410 136 60 15 7.3
24 36 360 70 430 144 60 20 8.6
26 38 380 90 470 152 70 20 10.7
28 42 420 90 510 168 70 20 13.7
30 44 440 100 540 176 80 20 16.1
32 48 480 100 580 192 80 25 20.5
34 50 500 110 610 200 90 25 23.7
36 54 540 120 660 216 90 30 29.7
38 56 560 120 680 224 100 30 33.4
40 60 600 130 730 240 110 30 41.1
42 62 620 130 750 248 110 30 44.7
44 66 660 140 800 264 120 35 54.8
46 68 680 150 830 272 120 35 59.6
48 72 720 160 880 288 130 35 70.9
50 74 740 160 900 296 130 40 76.9



ꂘ Send Inquiry
U Anchor is an main accessory in marine rubber fender system. It is used to hold chains. Generally the material of U Anchors is Q235 painted, Q235 hot-dip galvanization.
