Shackles

General Details

Shackles and other accessories are all referenced to the nominal chain diameter for equivalent strength and typically of larger diameter material. However, it is common to use shackles the same size as the SL2 grade open link chain to provide an easily replaceable “weak link” in the system.

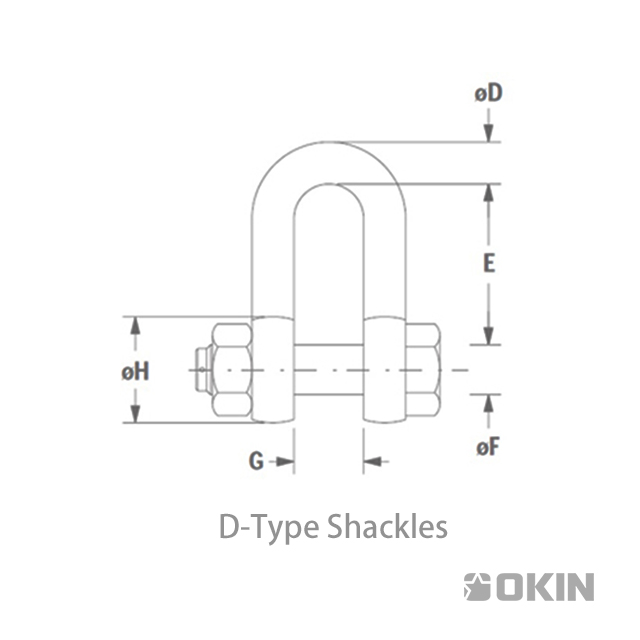

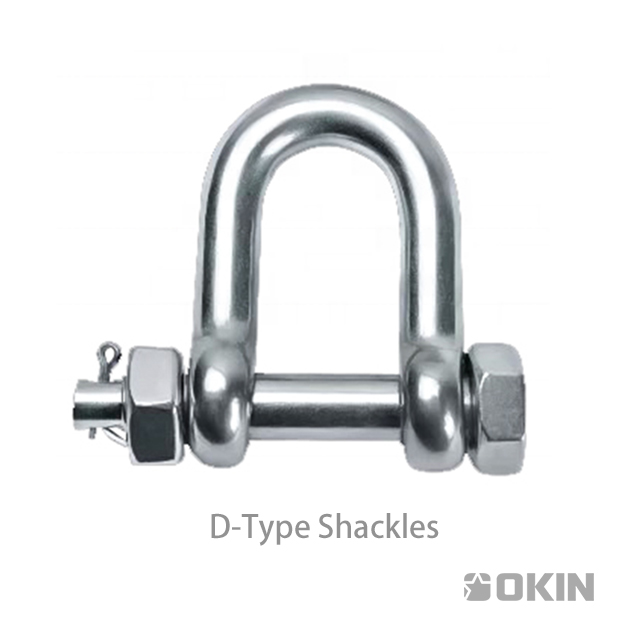

D-Type Shackles
ØC (mm) ØD (mm) E (mm) ØF (mm) G (mm) ØH (mm) MBL (kN) Weight (kg each)
16 16 51 20 27 40 128 0.7
18 19 60 22 32 44 190 1.1
19-20 22 71 25 37 50 255 1.5
22 25 81 30 43 60 335 2.6
24 28 90 32 46 64 375 3.4
26 32 100 35 52 70 470 4.8
28 35 111 38 57 76 530 6.2
30-32 38 122 42 60 84 670 7.6
34-38 44 146 50 73 100 980 13.0
40-46 50 171 56 83 112 1375 18.2
48-50 56 180 65 95 130 1770 27.8
- 64 203 70 105 140 2160 35.0
- 76 216 82 127 164 3340 60.0
- 89 266 95 133 190 4710 93.0
- 102 305 108 140 216 5890 145.0
- 110 360 121 184 242 7848 180.0
- 120 390 130 216 260 9810 225.0

All dimensions in millimetres

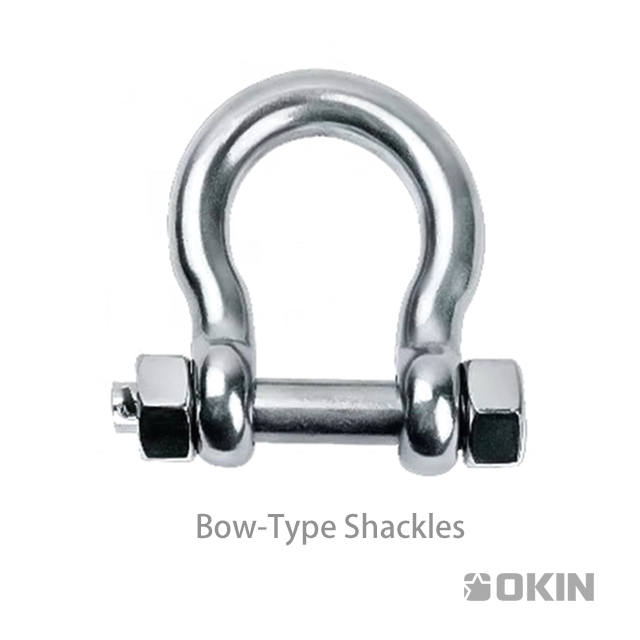

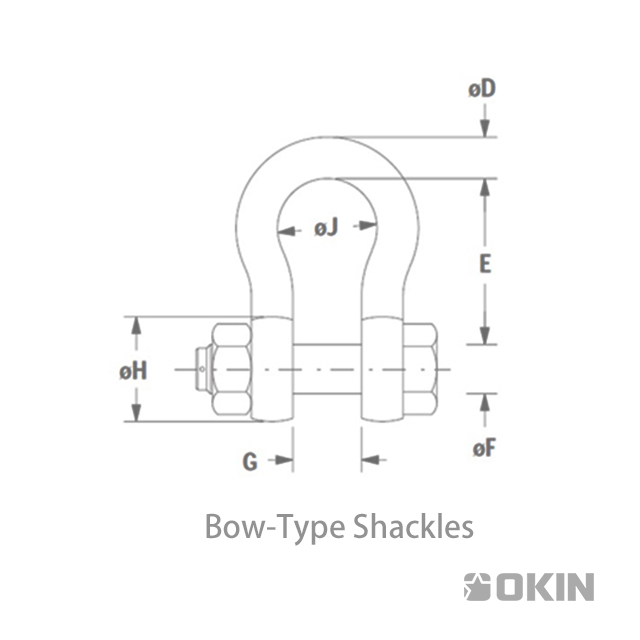

Bow-Type Shackles
ØC (mm) ØD (mm) E (mm) ØF (mm) G (mm) ØH (mm) ØJ (mm) MBL (kN) Weight (kg each)
16 16 60 20 27 40 42 128 0.7
18 19 71 22 32 44 51 190 1.1
19-20 22 84 25 37 50 58 255 1.5
22 25 95 30 43 60 68 335 2.6
24 28 108 32 46 64 74 375 3.4
26 32 119 35 52 70 83 470 4.8
28 35 132 38 57 76 89 530 6.2
30-32 38 146 42 60 84 98 670 7.6
34-38 44 178 50 73 100 110 980 13.0
40-46 50 197 56 83 112 120 1375 18.2
48-50 56 235 65 95 130 130 1770 27.8
- 64 267 70 105 140 150 2160 35.0
- 76 330 82 127 164 170 3340 60.0
- 89 371 95 133 190 200 4710 93.0
- 102 371 108 140 216 240 5890 145.0
- 110 394 121 184 242 280 7848 180.0
- 120 508 130 216 260 305 9810 225.0

All dimensions in millimetres
