Roller Wheel Fender

General Details

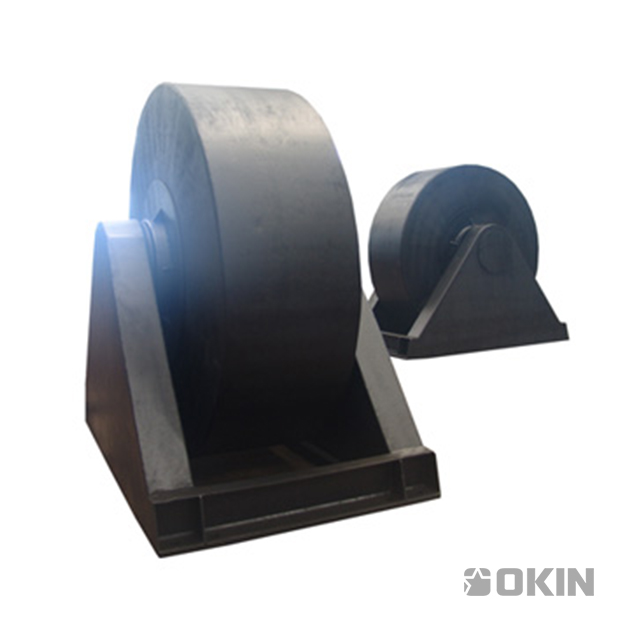

Roller Wheel Fenders are commonly used on the berth corners and dock entrances. They are also widely installed along the walls of dry docks and other restricted channels to help guide vessels and prevent hull damage. They can be divided into two types, Roller Fender and Wheel Fender.

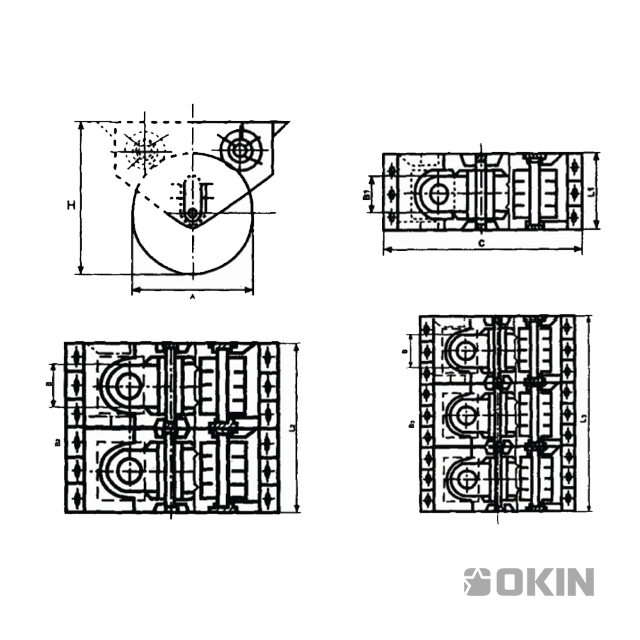

Size A B C D L1 H Weight
mm　 kg
KZD-A600x200 600 200 695 320 420 620 128
KZD-A750x250 750 250 870 400 510 775 248
KZD-A900x300 900 300 1040 480 610 930 466
KZD-A1200x400 1200 400 1380 640 820 1240 1046
KZD-A1500x500 1500 500 1740 800 1010 1550 2011
KZD-A1800x600 1800 600 2080 960 1210 1860 3443
KZD-A2100x700 2100 700 2440 1155 1410 2205 5612
KZD-A2400x800 2400 800 2770 1280 1610 2480 8116
KZD-A2700x900 2700 900 3130 1440 1810 2790 11595
KZD-A3000x1000 3000 1000 3480 1600 2010 3100 16011

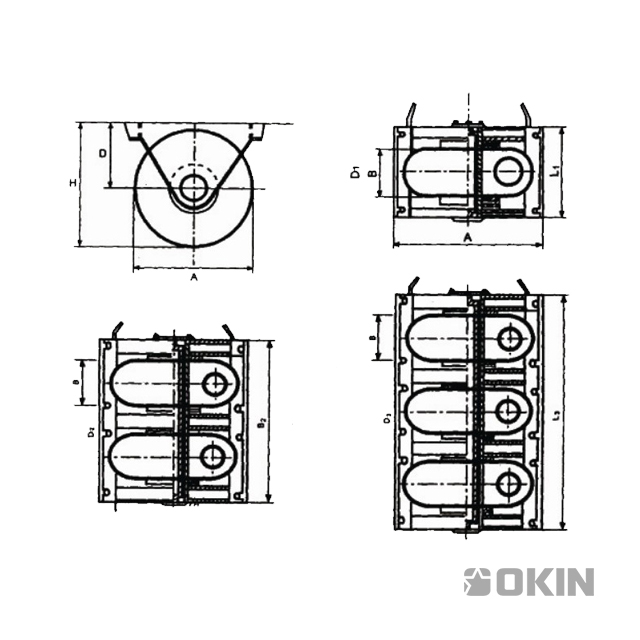

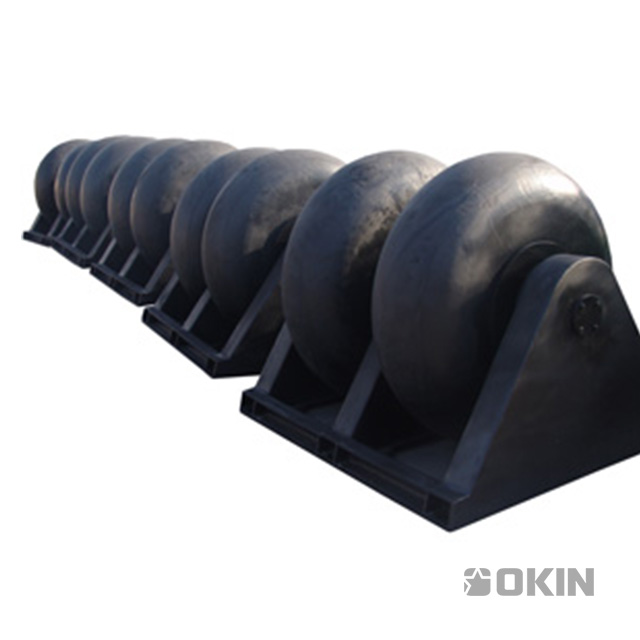

Wheel Fender

OKIN Wheel Fender Specification



Size A B Max. Deform.
KZD-B1200x400 1200 400 431
KZD-B1500x500 1500 500 541
KZD-B1800x600 1800 600 650
KZD-B2100x700 2100 700 762
KZD-B2400x800 2400 800 851
KZD-B2700x900 2700 900 964
KZD-B3000x1000 3000 1000 1074
ꂘ Send Inquiry
Roller Wheel Fenders are commonly used on the berth corners and dock entrances.
