GD Type Rubber Fender

General Details

GD Fenders are developed on the basis of D Fenders. They can be fixed with double line anchors which greatly increase the installation stability. Furthermore, their anchoring bolt is bigger than D Fender so that the anchoring grip is double to D Fender.

OKIN Wing Fender



Usually wing fenders are used as an alternative to other profiles as beltings for tugs and workboats. Instead of drilling the fender, the wings of wing fender are retained by steel angles.



Wing Fenders are friendly to installation. They are forcibly jacked into the angles during installation and joints between adjacent sections are“plugged”to achieve a smooth and continuous contact face. Once fitted, the “wings” of the wing fender sit tightly within the angles making this arrangement very resistant to longitudinal and transverse shear. Due to that, the wing fender is ideal for tugs performing escort duties and similar applications.



Core Attributes



The reaction force and energy absorption of wing fender are higher than D fender

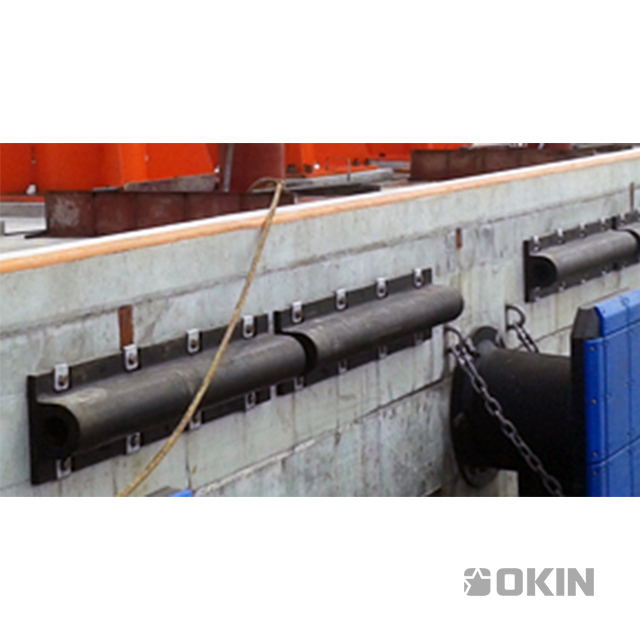

Compact size and expedient installation due to the “wing” design KDO Wing Fender enlarge fender bottom width and pre-built-in steel plate mount. Particularly applicable for framework quay, in addition the wing fender can be arranged and used with other types of rubber fender.





Specification

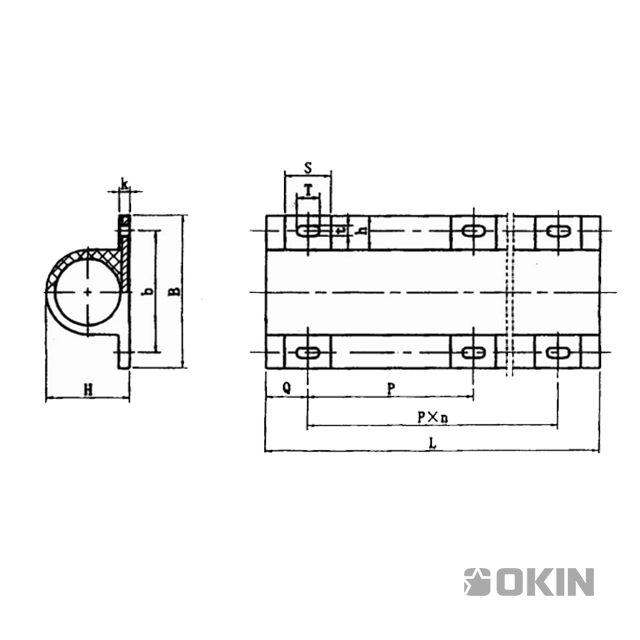

OKIN Wing Fender Specification



Size Dimensions (mm)
H B b L Q p s h T t K n
KDO280H x 540 x 1000L 280 540 430 1000 150 700 165 120 82 41 40 2
KDO280H x 540 x 1500L 280 540 430 1500 150 600 165 120 82 41 40 3
KDO280H x 540 x 2000L 280 540 430 2000 145 570 165 120 82 41 40 4
KDO280H x 540 x 2500L 280 540 430 2500 150 550 165 120 82 41 40 5
KDO280H x 540 x 3000L 280 540 430 3000 150 540 165 120 82 41 40 6
KDO300H x 600 x 1000L 300 600 490 1000 150 700 165 120 82 41 40 2
KDO300H x 600 x 1500L 300 600 490 1500 150 600 165 120 82 41 40 3
KDO300H x 600 x 2000L 300 600 490 2000 145 570 165 120 82 41 40 4
KDO300H x 600 x 2500L 300 600 490 2500 150 550 165 120 82 41 40 5
KDO300H x 600 x 3000L 300 600 490 3000 150 540 165 120 　 　 　 　
