Super Cell Fender

General Details



Super Cell Fender is improved over the ordinary type. It is the most commonly used fender in the world. The circular mounting base of the super cell fender makes it an extremely stable fender type.



Super Cell Fender has high absorption energy per unit weight. Also among all types of compressed fenders, it has the lowest compression performance change. Our OKSC super cell fenders are available in a wild range of sizes from 400H to 3000H.



In the front of the super cell fender system, there always be equipped with frontal frame. The frontal frame is including the steel panel and the UHMW-PE Facing Pad. It is greatly reduce the face pressure on ship panel and the friction coefficient.







Core Attributes



  • Low reaction force; High capability of energy absorption
  • High force absorption and long usage life
  • Super cell fenders are high technical products developed to substitute common cell fenders. The rated compression reaches 55% and the E/R.H is 15% higher than E/R.H of common cell fenders.
  • The OKIN provides two types front panel, closed and opened. Closed panel has longer service life and better anti-corrosion than opened panel. It could be designed as per client’s requirements.





Specification

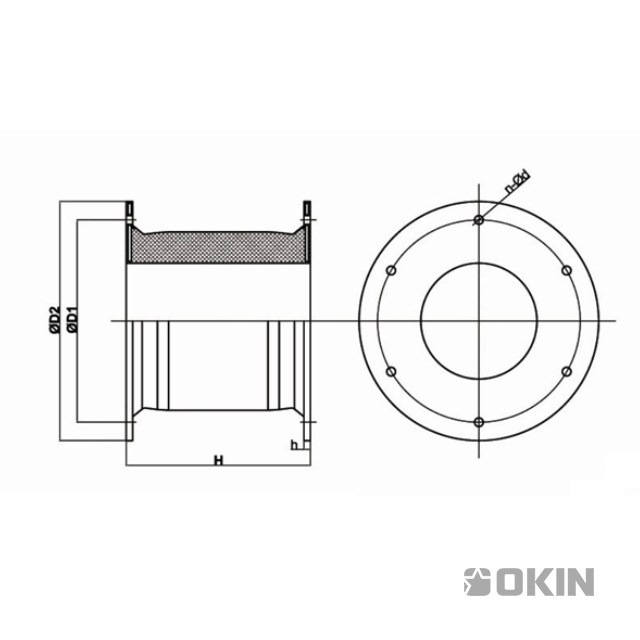

OKSC Super Cell Fender Specification



Size Dimensions
Item H ΦD1 ΦD2 h n x Φd
KCO400H 400 650 550 25 4 x Φ30
KCO500H 500 650 550 25 4 x Φ32
KCO630H 630 840 700 30 4 x Φ39
KCO800H 800 1050 900 30 6 x Φ40
KCO1000H 1000 1300 1100 35 6 x Φ47
KCO1150H 1150 1500 1300 40 6 x Φ50
KCO1250H 1250 1650 1450 45 6 x Φ53
KCO1450H 1450 1850 1650 47 6 x Φ61
KCO1600H 1600 2000 1800 50 8 x Φ61
KCO1700H 1700 2100 1900 55 8 x Φ66
KCO2000H 2000 2200 2000 55 8 x Φ74
KCO2250H 2250 2550 2300 60 10 x Φ74
KCO2500H 2500 2950 2700 70 10 x Φ90
KCO3000H 3000 3350 3150 75 12 x Φ90
